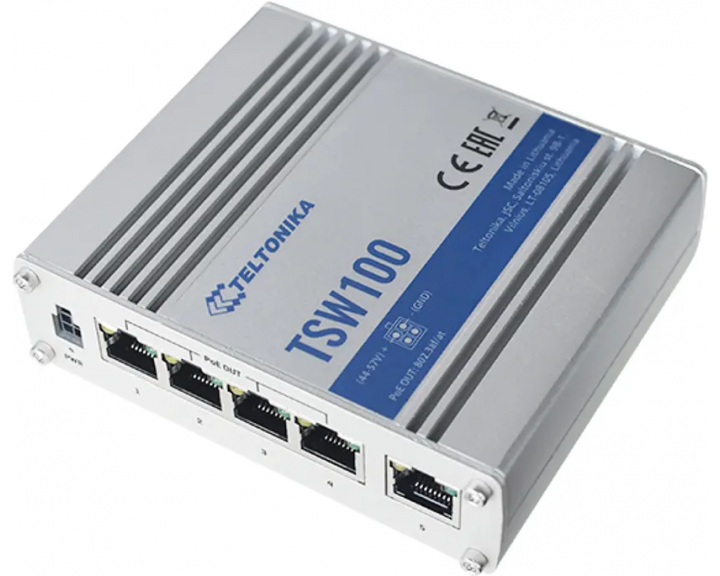

Industriell Unmanaged PoE+ Switch,
4+1x10/100/1000Mbps, PoE+, 120W.

KEY FEATURES

FUNCTIONS

SPECIFIKATIONER (Engelska)
ETHERNET
LAN	5xETH ports, 10/100/1000Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards	802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
PoE
PoE ports	Port 1-4
PoE standards	802.3af and 802.3at
PoE Max Power per Port (at PSE)	30W
PoE Power Budget (at PSE)	120W
PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking)	10Gbps
Packer buffer	128KB
MAC address table size	2K entries
POWER
Connector	4-pin industrial DC power socket
Input voltage range	7–57VDC
PoE-out input voltage range	44–57VDC
Power consumption	Idle: 2W / Max (no PoE): 9W / PoE Max: 129W
PHYSICAL INTERFACES
Ethernet	5xRJ45 ports, 10/100/1000Mbps
Status LEDs	1xPower LED, 10xLAN status LEDs
Power	1x4-pin industrial DC power socket
Other	1xGrounding screw
PHYSICAL SPECIFICATION
Casing material	Aluminum housing
Dimensions (WxHxD)	115x32x95mm
Weight	350g
Mounting options	DIN rail or wall mounting (additional kit needed), flat surface placement
OPERATING ENVIRONMENT
Operating temperature	-40°C to 75°C
Operating humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30
REGULATORY & TYPE APPROVALS
Regulatory	CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM
SAFETY
Standards	EN IEC 62368-1:2020+A11:2020
