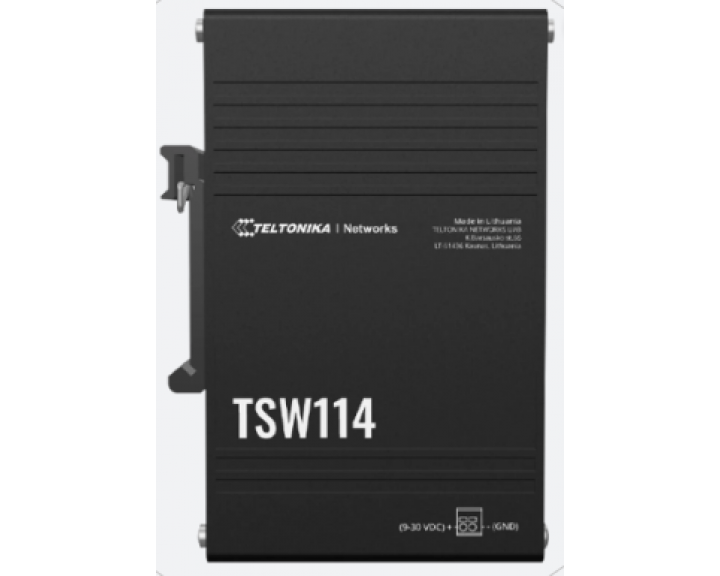

Industriell Switch För DIN-montering,
5x10/100/1000Mbps

NYCKELFUNKTIONER

FUNKTIONER

SPECIFIKATIONER (Engelska)
ETHERNET
LAN	5xETH port, 10/100/1000Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards	802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking)	10Gbps
Packer buffer	128KB
MAC address table size	2K entries
Jumbo frame support	9216bytes
POWER
Connector	2-pin industrial DC power socket
Input voltage range	9–30VDC
PoE (passive)	Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9-30VDC
Power consumption	Idle: 0.3W / Max: 2.3W
PHYSICAL INTERFACES
Ethernet	5xRJ45 ports, 10/100Mbps
Status LEDs	1xPower LED, 10xLAN status LEDs
Power	1x2-pin industrial DC power socket
Other	1xGrounding screw
PHYSICAL SPECIFICATION
Casing material	Aluminum housing
Dimensions (WxHxD)	113.1x27.4x80.5mm
Weight	174g
Mounting options	DIN rail or wall mounting (additional kit needed), flat surface placement
OPERATING ENVIRONMENT
Operating temperature	-40°C to 75°C
Operating humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30
REGULATORY & TYPE APPROVALS
Regulatory	CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM
SAFETY
Standards	EN IEC 62368-1:2020+A11:2020
