| Wi-Fi Accesspunkt. | ||
|
|
|
| SPECIFIKATIONER (Engelska) | |
|---|---|
| WIRELESS | |
| Wireless mode | IEEE 802.11b/g/n (Wi-Fi 4). |
| Wi-Fi security | WPA2-EAP/WPA3-EAP Mixed Mode, WPA3-EAP, WPA2-PSK/WPA3-SAE Mixed Mode, WPA3-SAE, OWE, WPA-PSK/WPA2-PSK Mixed Mode, WPA2-PSK, WPA2-EAP; AES-CCMP, TKIP, Auto Cipher modes, client separation. |
| SSID/ESSID | SSID stealth mode and access control based on MAC address. |
| Wi-Fi users | Up to 100 simultaneous connections. |
| Wireless mesh/roaming | Fast roaming (802.11r). |
| Wireless MAC filter | Whitelist, blacklist. |
| Wireless QR code generator | Once scanned, a user will automatically enter your network without needing to input login information. |
| ETHERNET | |
| Ethernet | 1xRJ45 port 10/100Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover. |
| NETWORK | |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL v3, TLS, ARP, SSH, DHCP client, SMNP. |
| SECURITY | |
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block. |
| VLAN | Tag-based VLAN separation. |
| DLMS | |
| DLMS Support | DLMS - standard protocol for utility meter data exchange. |
| MONITORING & MANAGEMENT | |
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log. |
| FOTA | Firmware update from server, automatic notification. |
| SSH | SSH (v1, v2). |
| SNMP | SNMP (v1, v2, v3), SNMP Trap. |
| JSON-RPC | Management API over HTTP/HTTPS. |
| RMS | Teltonika Remote Management System (RMS). |
| SYSTEM CHARACTERISTICS | |
| CPU | Mediatek, 580 MHz, MIPS 24KEc. |
| RAM | 64MB, DDR2. |
| FLASH storage | 16MB, SPI Flash. |
| FIRMWARE / CONFIGURATION | |
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup. |
| FOTA | Update FW. |
| RMS | Update FW/configuration for multiple devices at once. |
| Keep settings | Update FW without losing current configuration. |
| FIRMWARE CUSTOMISATION | |
| Operating system | RutOS (OpenWrt based Linux OS). |
| Supported languages | Busybox shell, Lua, C, C++. |
| Development tools | SDK package with build environment provided. |
| GPL customization | You can now create your own custom firmware and web page application, with some examples to make the creation process easier; and brand our firmware by changing colours, logos, and so on to fit your or your clients’ needs. |
| POWER | |
| Connector | RJ45 Socket. |
| Input voltage range | 44.0–57.0V. |
| PoE standards | 802.3af PoE Class 1. |
| Power consumption | < 2W Max. |
| PHYSICAL INTERFACES | |
| Ethernet | 1xRJ45 ports, 10/100Mbps. |
| Status LEDs | 1xPower LED (can be turned off from web-UI). |
| Antennas | 2xInternal for 2.4GHz Wi-Fi. |
| Reset | Reboot/User default reset/Factory reset button. |
| PHYSICAL SPECIFICATION | |
| Casing material | UV stabilized plastic. |
| Dimensions | Ø158mmx30mm. |
| Weight | 190g. |
| Mounting options | AP Mounting Bracket (for ceiling mount). |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40°C to 75°C. |
| Operating humidity | 10% to 90% non-condensing. |
| Ingress Protection Rating | IP30. |
| REGULATORY & TYPE APPROVALS | |
| Regulatory | CE, UKCA, CB, FCC, IC, WEEE. |
| EMC EMISSIONS & IMMUNITY | |
| Standards | EN 55032:2015+A11:2020.
|
| ESD | EN 61000-4-2:2009. |
| RS | EN IEC 61000-4-3:2020. |
| EFT | EN 61000-4-5:2014+A1:2017. |
| Surge protection | EN 61000-4-5:2014+A1:2017. |
| CS | EN 61000-4-6:2014. |
| DIP | EN IEC 61000-4-11:2020. |
| PERFORMANCE SPECIFICATIONS | |
| Standards | EN 300 328 V2.2.2. |
| SAFETY | |
| Standards | IEC 62368-1:2018.
|

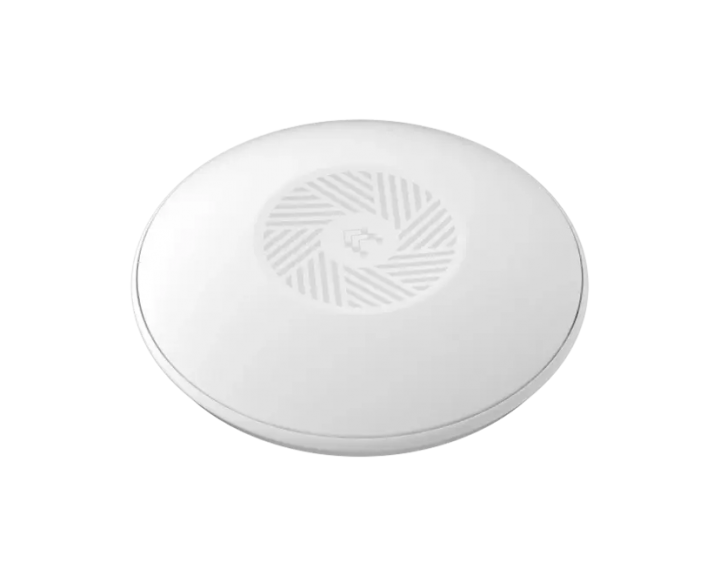

TAP100
Wi-Fi Accesspunkt.
PRODUKTBLAD
- Tillverkare: Teltonika
- Art.nr: 25-600
- I lager 20st
- Tillgängliga 20st
Tags: Teltonika TAP100
