Industriell 5G Router Med Modem

NYCKELFUNKTIONER

Intern 5G med upp till 3.3Gbps nedladdning.
Du behöver inget externt 5G modem/kort etc.
5G/4G/LTE/3G.
VPN (OpenVPN och DynDNS) tillåter förbindelse
punkt-till-punkt. Du behöver ingen extra VPN-router.
Höghastighet 867Mbps 802.11b/g/n trådlöst nätverk.
Avancerad kryptering med Wi-Fi
Protected Access™ (WPA/WPA2).
Inbyggd DHCP-server.
4x10/100/1000 Mbps.
1xWAN 10/100/1000 Mbps.
Simple routerkonfiguration via webbläsare.
Du behöver ingen extra programvara.
Temp. Område -40° upp till 75°C.

FUNKTIONER

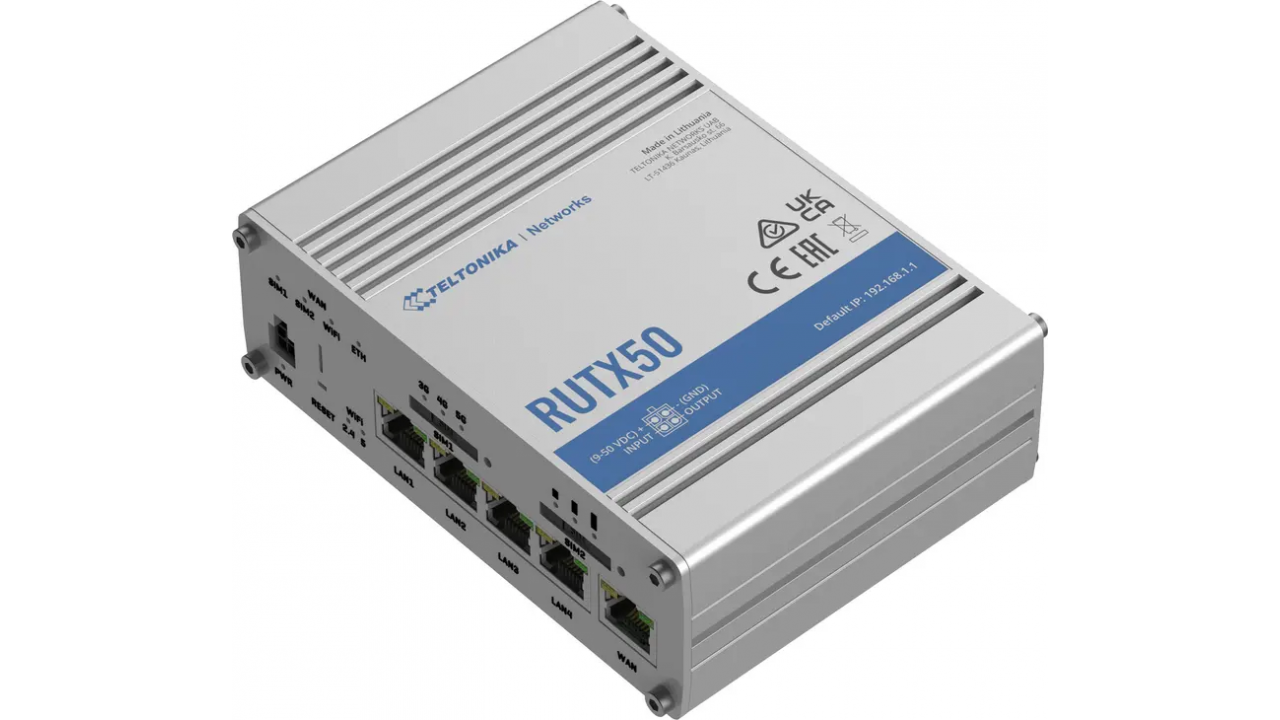

RUTX50 är en kompakt, prisvärd och säker industriell 5G/4G/LTE-WLAN-router för professionell användning.
Den mobila routern ger hög prestanda för affärskritisk mobilkommunikation i tuffa och farliga miljöer där en hög drifttemperatur krävs.
Utrustad med en extern SIM-hållare, digitala in- /utgångar och status-LED:er för signalstyrka garanterar den en enkel
nätverksförberedning och -hantering.

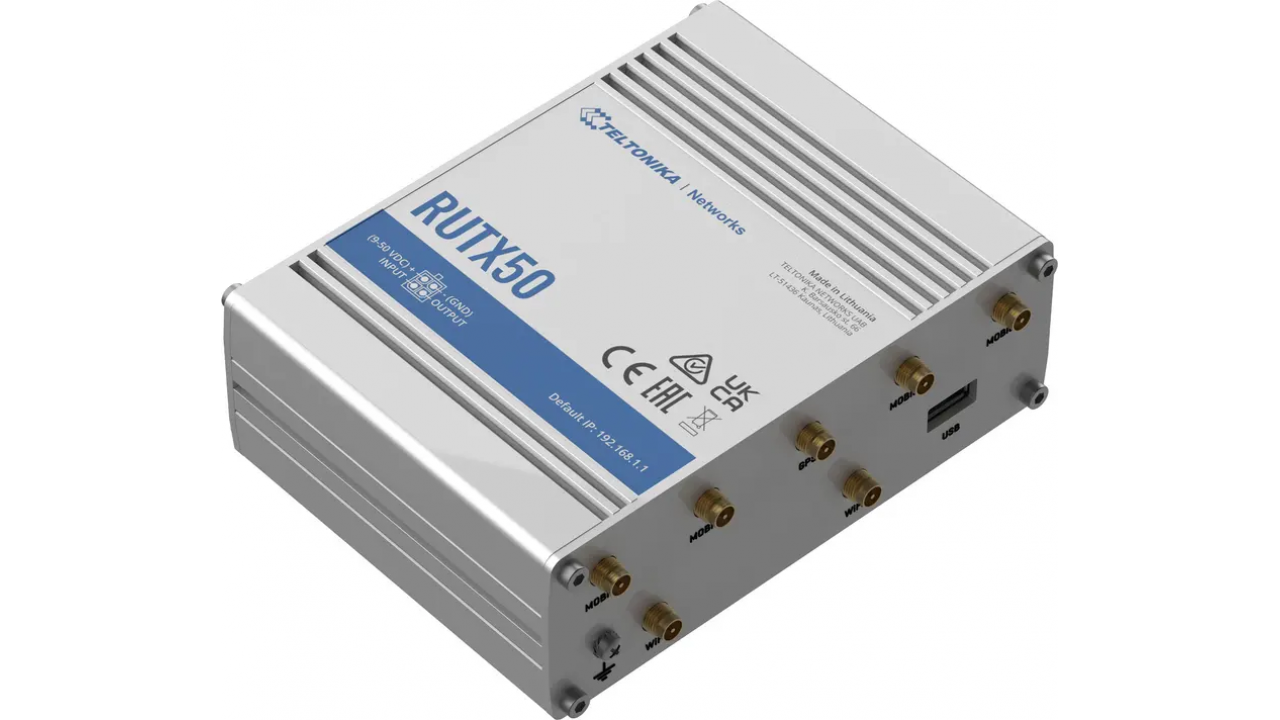

Externa SMA-portar möjliggör anslutning av önskad antenn och enkel sökning efter bästa signalplats.
Den industriella LTE-routern RUTX50 stöder branschledande säkerhetsfunktioner och används ofta för 5G-backup-,
Remote Connection-, Out-of-Band-Management-, Advanced VPN- och Tunneling-tjänster i IoT-nätverkslösningar.
Kompakt, men kraftfull 5G/4G/LTE- och WiFi-mobilrouter med Ethernet och E/A.
Perfekt för snabb driftsättning i affärskritiska IoT-program, i vilka utökade Networking-, VPN- och säkerhetsfunktioner krävs.

SPECIFIKATIONER (Engelska)
MOBILE
Mobile module	5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600Mbps UL (2x2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42Mbps DL, 5.76Mbps UL
SIM switch	2xSIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status	Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
SMS	SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD	Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list	Operator black/white list
Multiple PDN	Possibility to use different PDNs for multiple network access and services
Band management	Band lock, Used band status display
APN	Auto APN
Bridge	Direct connection (bridge) between mobile ISP and device on LAN
Passthrough	Router assigns its mobile WAN IP address to another device on LAN
WIRELESS
Wireless mode	IEEE 802.11b/g/n, Access Point (AP), Station (STA)
WiFi security	WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
SSID/ESSID	SSID stealth mode and access control based on MAC address
WiFi users	Up to 150 simultaneous connections
Wireless Connectivity Features	Fast roaming (802.11r), Relayd
Wireless MAC filter	Whitelist, blacklist
Wireless QR code generator	Once scanned, a user will automatically enter your network without needing to input login information
NETWORK
Hotspot	Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden,user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes
Routing	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
VoIP passthrough support	H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring	Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall	Port forward, traffic rules, custom rules
Firewall status page	View all your Firewall statistics, rules, and rule counters.
Ports management	View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on.
Network topology	Visual representation of your network, showing which devices are connected to which other devices.
DHCP	Static and dynamic IP allocation, DHCP Relay
QoS / Smart Queue Management (SQM)	Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS	Supported 25 service providers, others can be configured manually
Network backup	Network backup
Load balancing	Balance your internet traffic over multiple WAN connections
SSHFS	Possibility to mount remote file system via SSH protocol
ETHERNET
WAN	1xWAN port, 10/100M/1000Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN	4xLAN port, 10/100M/1000Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
SECURITY
Authentication	Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
Firewall	Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention	DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN	Port and tag based VLAN separation
Mobile quota control	Mobile data limit, customizable period, start time, warning limit, phone number
WEB filter	Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Access control	Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
OpenVPN	Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption	DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec	IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE	GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP	Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel	Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs' code
DMVPN	Method of building scalable IPsec VPNs
SSTP	SSTP client instance support
ZeroTier	ZeroTier VPN client support
WireGuard	WireGuard VPN client and server support
Tinc	Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
MODBUS TCP SLAVE
ID range	Respond to one ID in range [1;255] or any
Allow Remote Access	Allow access through WAN
Custom registers	MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality
MODBUS TCP MASTER
Supported functions	01, 02, 03, 04, 05, 06, 15, 16
Supported data formats	8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
DATA TO SERVER
Protocol	HTTP(S), MQTT, Azure MQTT, Kinesis
MQTT GATEWAY
MQTT gateway	Allows sending commands and receiving data from Modbus Master through MQTT broker
DNP3
Supported modes	TCP Master, DNP3 Outstation
DLMS
DLMS Support	DLMS - standard protocol for utility meter data exchange
MONITORING & MANAGEMENT
WEB UI	HTTP/HTTPS, status, configuration, FW update, CLI ,troubleshoot, event log, system log, kernel log
FOTA	Firmware update from sever, automatic notification
SSH	SSH (v1, v2)
SMS	SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call	Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
TR-069	OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT	MQTT Broker, MQTT publisher
SNMP	SNMP (v1, v2, v3), SNMP trap
JSON-RPC	Management API over HTTP/HTTPS
MODBUS	MODBUS TCP status/control
RMS	Teltonika Remote Management System (RMS)
IoT PLATFORMS
Clouds of things	Allows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorx	Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity	Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
Azure IoT Hub	Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type
SYSTEM CHARACTERISTICS
CPU	Quad-core ARM Cortex A7, 717 MHz
RAM	256 MB (100 MB available for userspace)
FLASH storage	256 MB (80 MB available for userspace)
FIRMWARE / CONFIGURATION
WEB UI	Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
FOTA	Update FW/configuration from server
RMS	Update FW/configuration for multiple devices
Keep settings	Update FW without losing current configuration
FIRMWARE CUSTOMISATION
Operating system	RutOS (OpenWrt based Linux OS)
Supported languages	Busybox shell, Lua, C, C++
Development tools	SDK package with built environment provided
GPL customization	You can now create your own custom firmware and web page application, with some examples to make the creation process easier; and brand our firmware by changing colours, logos, and so on to fit your or your clients’ needs.
LOCATION TRACKING
GNSS	GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates	GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA	NMEA 0183
NTRIP	NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server software	Supported server software TAVL, RMS
Geofencing	Configurable multiple geofence zones
USB
Data rate	USB 2.0
Applications	Samba share, USB-to-serial
External devices	Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage formats	FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
INPUT/OUTPUT
Input	1xDigital Input, 0-6V detected as logic low, 8-30V detected as logic high
Output	1xDigital Output, Open collector output, max output 30V, 300mA
Events	SMS, EMAIL, RMS
I/O juggler	Allows to set certain I/O conditions to initiate event
POWER
Connector	4-pin industrial DC power socket
Input voltage range	9–50VDC, reverse polarity protection, surge protection 51VDC 10us max
PoE (passive)	Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9-30VDC
Power consumption	4W idle, 18W Max
PHYSICAL INTERFACES
Ethernet	5xRJ45 ports, 10/100/1000Mbps
I/Os	1xDigital Input, 1xDigital Output on 4-pin power connector
Status LEDs	3xconnection status LEDs, 3xconnection strength LEDs, 10xEthernet port status LEDs, 4xWAN status LEDs, 1xPower LED, 2x2.4G and 5G Wi-Fi LEDs
SIM	2xSIM slot (Mini SIM–2FF), 1.8V/3V
Power	1x4 pin DC connector
Input/output	1x10-pin industrial socket for inputs/outputs
Antennas	4xSMA for Mobile, 2xRP-SMA for Wi-Fi, 1xSMA for GNNS
USB	1xUSB A port for external devices
Reset	Reboot/User default reset/Factory reset button
PHYSICAL SPECIFICATION
Casing material	Aluminium housing with DIN rail mounting option, plastic panels
Dimensions (WxHxD)	132x44.2x95x1mm
Weight	533g
Mounting options	DIN rail (can be mounted on two sides), flat surface placement
OPERATING ENVIRONMENT
Operating temperature	-40°C to 75°C
Iperating humidity	10% to 95% non-condensing
Ingress Protection Rating	IP30
