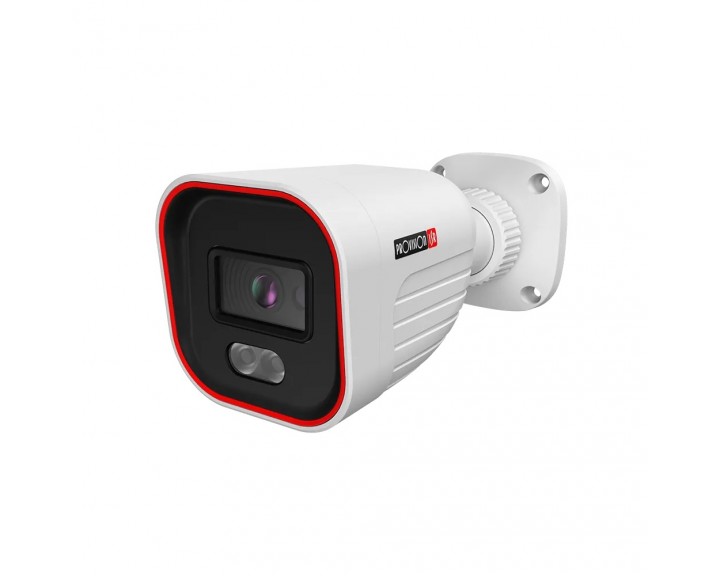

4MP Tub Camera,
DDA 1st Generation (Human Only),
2.8mm (93°) Lens, 20M IR.

KEY FEATURES

1/3” CMOS.
Resolution: 2560x1440/25FPS (4MP).
Lens: 2.8mm.
True Day & Night – ICR.
Illumination: 20m (1 High-Power IR LED) + 20m (1 High-Power White LED).
Compression: H.265+/ H.264+ / H.265 / H.264 / MJPEG.
General Analytics: Camera Tampering.
AI Analytics: Line Crossing, Sterile Area Humans Only.
Digital WDR, BLC, HLC, ROI.
PoE.
Buith built-in Microphone.
ONVIFF: Profile S.
Water Proof: IP67.
Weight: 300g.
Power: DC12V/~350mA / PoE/~4.5W.

FUNCTIONS

This 4MP hybrid bullet camera is made of aluminum alloy and polycarbonate. With it's hybrid capability,
the white LED will enlighten the scene when humans being detected. it's designed for short-distance surveillance
(up to 20m) in indoor and outdoor scenarios. With its excellent performance, reliability, and affordable price,
the BSH-340IPBN-28 camera is the perfect solution for basic installations.

Artificial Intelligence by Provision-ISR

Humans

2-Wheels

4-Wheels

Detect. Distinguish. Alert.

DDA™ VIDEO ANALYTICS allows the system to distinguish between humans, 4-wheel vehicles, and 2-wheel vehicles based on smart object recognition technology. Thanks to this technology, the system triggers alarms or sends push noti-fications only when the desired object is detected and, by doing so, reduces annoying false alarms caused by shad-ows, light changes, shaking trees, animals,Etc.

DDA™ Line Crossing

DDA™ Sterile Area

DDA™ People/Vehicle Counting

The user draws a line in the scene and sets the crossing direction
and permissions—for example, Pedestrian only street. If vehicles
are not allowed to enter the road, the system will generate an
alarm only when a vehicle crosses the line. No alarm will be
generated if a human crosses the line.

The user draws an area in the scene and sets access permissions—
for example, No-Parking Zone. If vehicles are not allowed to access
the “No-Parking Area, “ but people are, the system will generate
an alarm only when a vehicle enters the area. In addition, the user
can configure if entering/exiting the area will trigger an alarm.

The user places the camera at a gate entrance/exit for
real-time monitoring—for example, Vehicle Maximum Limit.
The system will count the number of vehicles entering and exiting
the area and alert when the number reaches the maximum limit.

SPECIFICATIONS
3rd Party Cyber Protection
General	No
Protection Methods	No
NDAA Compliant
NDAA Compliant	Yes
Video
Image Sensor	1/3" CMOS (16:9)
Effective Pixels	2560x1440
Electronic Shutter	1/3s ~ 1/100000s
Day & Night	ICR
Min. Illumination	Day: 0.1lux / Night: 0.9lux (@F2.2, AGC On) 0lux With IR/LED On
Audio
Audio compression	G.711A/G.711U
Communication	One-Way Audio
Image Settings	AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement	Digital WDR, BLC, HLC, ROI
Noise Reduction	3D-DNR
Image Orientation	Mirror/Flip
Privacy Zone	Yes
Events and Analytics
Analytics	General Analytics: Camera Tampering AI (Object Recognition): DDA Sterile Area, DDA Line Crossing *Human only
Motion Detection	Yes
DRI Distance	Detect 57m Recognize 11m Identify 6m
Compression
Resolution	4MP(2560x1440)/3MP(2304x1296)/2MP(1920x1080)/D1/QVGA/CIF
Frame Rate	1-25/30BPS
Video Compression	H.265+/H.264+/H.265/H.264/MJPEG**
Multi-Stream	Master Stream: 4MP(2592x1520)/2K(2560x1440)/3MP/2MP/1MP Substream: 1MP/QVGA/D1/CIF Third Stream: QVGA/D1/CIF (1~30fps)
Bit Rate	64Kbps ~ 4Mbps@H.265 / 64Kbps ~ 6Mbps@H.264
Encode Mode	VBR/CBR
Image Quality	Five levels under VBR; Free adjustment under CBR
Lens
Lens (Field of View)	2.8mm (93°)
Iris	Fixed Iris
Lens Mount	M12
Nätverk
User Access	Supports simultaneous monitoring of up to 10 users with multi-stream realtime transmission
Network Protocol	IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, E-post, FTP, HTTPS, QoS
Remote Monitoring	IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App
Ethernet	100Mbps
ONVIF	Profile S
Connectivity
Network	RJ45 (+PoE)
Audio Connectivity	Built-in Microphone
Alarm	No
SD Cort	No
Wiegand	No
Power	DC Socket
Analog Video Output	No
Housing
PoE	Yes
Illumination	20m (1 High-Power IR LED) 20m (1 High-Power White LED)
Power Supply	DC12V/~350mA / PoE/~4.5W
Protection Rate	Water Proof: IP67
Work Environment	-30°C~60°C, 10%~90% Humidity
Bracket	3-Axis Bracket
Dimensions	117.2x73.4x74.5mm
Weight (gross)	~300g
Hard Reset Button	Yes
Junction Box	PR-JB12IP66 - PR-JB12IP64 - PR-WB-A
