Wireless Camera Adapter
For Up To 4 x IPC

KEY FEATURES

FUNCTIONS

SPECIFICATIONS
Video
Video Input	4 x Wireless IPC (I3-330WIP536-M)
Supported Resolution	2MP
Video Output	2MP
Frame Rate	1-25/30fps
Audio
Audio compression	No
Communication	No
Image Processing
Image Settings	Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement	No
Noise Reduction	No (Performed by IPC)
Image Orientation	Mirror / Flip
Privacy Zone	Yes
Motion Detection	Yes
Analytics	No
Compression
Video Compression	H.265/H.264
Resolution	1080P (2MP - 1920x1080)
Multi-Stream	Master Stream: 2MP (1-25/30) Sub Stream: 640x360 (1-25/30) Main Stream: 64Kbps ~ 10Mbps@H.265/H.264
Bit rate	Sub Stream: 32Kbps ~ 1Mbps@H.265/H.264
Encode Mode	VBR/CBR
Image Quality	Five levels under VBR; Free adjustment under CBR
Housing
Protection Rate	N/A
Bracket	Wall Mount
Dimensions	186mm×74mm×31mm
Weight(gross)	110g
Connectivity
Network	RJ45
Power	DC Input
Audio Connectivity	No
SD card	No
RS485	No
Alarm	No
Network
Remote Monitoring	Provision CAM2 (Using NVR)
User Access	Supports simultaneous monitoring for up to 3 users
Camera Connection	WiFi* (802.11 b/g/n)
ONVIF	Limited
Ethernet	100Mbps
PoE	No
Others
Phyisical Buttons	Full Reset, Camera Link
Power Supply	12VDC/1A
Work Environment	0-55°C

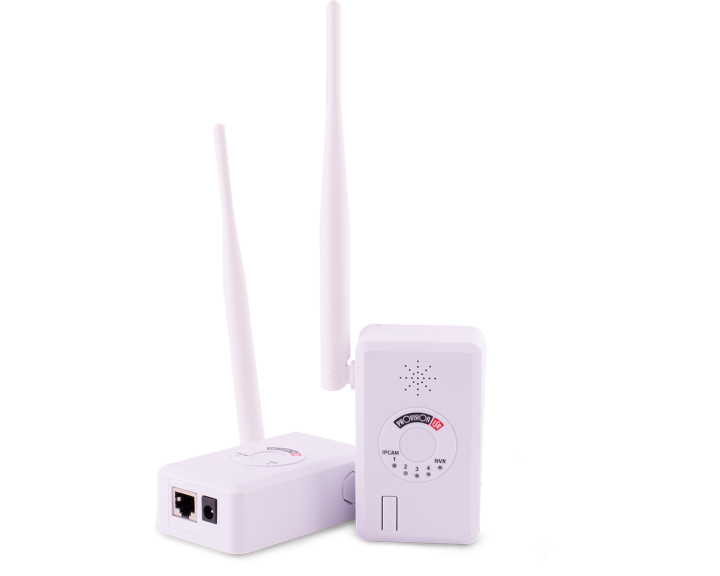

WR-04IPC-V2
