8 Channels Recorder 8MP,
Check Point Protection,
NDAA Compliance,
200/240bps, 80Mbps.


KEY FEATURES

  • Input: 8 Channel (Via Network).
  • Output: HDMI/HDMI(4K)/1080P/1280x1024/1024x768.
  • Recording resolution - up to 8 Megapixels.
  • 1U Case.
  • 1 HDD - 10TB.
  • Audio In/Out.
  • 1x1000Mbps Network.
  • DDA2, Face recognition, LPR and Fish-Eye support.


Provision-ISR’s NVR8-8200N-V2 is a high-performance network video recorder supporting
advanced Video Analytics (DDA2). The device, suitable for small-sized installations (up to 8 channels) features
and provides you with everything you need for a trouble-free CCTV project.
This model complies with NDAA demands and ensures that your devices are cyber-protected round the clock
with the integrated Check Point Quantum IoT Nano agent that provides an advanced threat prevention layer
against the common attack vectors at runtime.


Link To Video Manual All Chapters


SPECIFICATIONS
Cyber Protection

General

Quantum IoT Nano agent by Check Point™

Protection Methods

Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

Video

Input

8Ch over Network

Output

HDMI (4K@60Hz, 4K@30Hz, 1080P), VGA (1080P, 1280x1024, 1024x768)

View Mode

Mirrored

Decoding Format

H.265/H.265+/H.265S/H.264

Fish-Eye Dewarp

Web Only

Decoding Capabilities

1Ch-8MP; 4Ch-2MP; 8Ch-D1

Audio

Input

1CH RCA (Linear, 1kΩ) + IPC inputs

Output

1CH RCA (2.0 Vp-p, 1kΩ) + IPC outputs

Compression

G.711A/G.711U

Two Way Audio

Yes

Analytics

Analytics Channels

8Ch (requires supporting IPC)

Supported Analytics

Camera Tampering, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, Face Recognition, LPR. Advanced Face Recognition Mode: Supports up to 2 Non-AI IPC and performs face detection and recognition.

Face Recognition Rate

-

Bandwidth

Incoming

80Mbps

Outgoing

80Mbps

Record/Main Stream

Real-Time Recording

8CH 8MP real-time

Record Type

Video/Video+Audio

12MP

-

8MP

240FPS (NTSC)/200FPS (PAL)

5MP and lower

240FPS (NTSC)/200FPS (PAL)

Master stream over network

Up to 8CH@Recording resolution

Record/Remote App

Resolution

Depends on IPC

Sub-Streams over Network

Up to Outgoing Bandwidth Capacity

Recording Modes

Schedule, Manual, Motion, Sensor, Analytics, POS and all combinations

User Access

64 Users online with Professional Authority Management

Mobile App

Provision Cam2 for iOS/Android

PC/Mac Software

Ossia VMS Standard/Enterprise

Plug-in free Web-Browser

Chrome, FireFox, Safari, Edge, Opera.
(All Limited to 4Ch Live View/Playback)

Plug-in based Web-Browser

Internet Exporer

Playback

Local Playback

8Ch

Remote Playback (Web, App, VMS)

8Ch on IE, 4Ch on H5

Search Mode

DDA Object, Smart Search, LPR, Face Recognition, Time-Slice, Time, Event, POS

Backup

USB

2 USB 2.0 Port + 1 USB 3.0 Port

Backup Format

AVI (Unencrypted) / Private Format (Encrypted/Unencrypted)

Alarm

Input

-

Output

-

Storage

HDD

1

E-SATA

-

Max Capacity

10TB

RAID

-

PTZ

Connection

via Network

Supported Controls

Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus

RS-485

-

Network

Ethernet

1x1000/100/10Mbps self-adaptive Ethernet interface with Fault Tolerance/Dual Network Configuration

Protocols

TCP/IPv4/IPv6, DHCP, DDNS, NTP, SMTP, SSL/TLS, UPnP, P2P, RTSP, FTP, HTTPS, 820.1X, SNMP, Auto Report (Ossia VMS)

ONVIF

Full Device Support (Profile T/G, ONVIF Version 20.12)

PoE

Ports

N/A

Speed

N/A

Standard

N/A

CCTV Mode

N/A

Total Power

N/A

Max. Power Output (Per Ch.)

N/A

Others

Power Supply

12VDC/2A

Power consumption (No HDD)

10W

Dimension

W300xD249xH45mm

Operation Temperature

0~50°C

Write a review

Please login or register to review

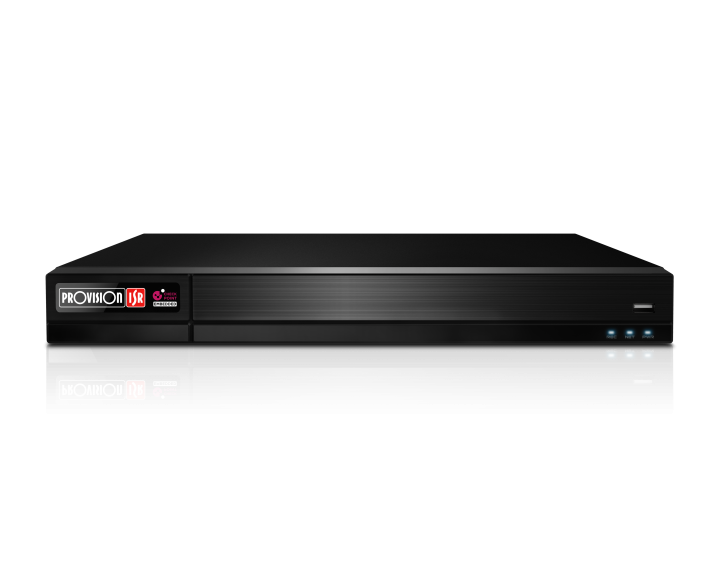

NVR8-8200N-V2

8 Channels Recorder 8MP,
Check Point Protection,
NDAA Compliance,
200/240bps, 80Mbps.


PRODUCT SHEET

  • Manufacturer: Provision ISR
  • Product Code: 22-315
  • EAN: 0610840139251
  • In Stock 0pcs Delivery 7-10 Days from order date!
  • Available -1pcs

0 reviews / Write a review
