4 Channel 12MP IP Recorder
With 4xPoE, Intelligent Analytics,
Human Detection, Vehicle Detection,
Licence Plate Recognition,
Perimeter Intrution and Line
Crossing Statistics.
KEY FEATURES
- Maximum support for 4 channels of 4K IP camera input.
- 4xPoE.
- H.265 encoding and decoding.
- Supports standard ONVIF protocol.
- With 1 internal HDD drive bays, up to 10TB.
- Supports intelligent analytics such as, human detection, vehicle detection,
license plate recognition, perimeter intrusion, and line crossing statistics.
- Allows remote access from mobile devices and computers.
- Supports external alarm devices and features RCA interface for voice intercom.
FUNCTIONS
| Video | |
|---|---|
| Input Bandwidth | 76Mbps |
| Out Bandwidth | 76Mbps |
| Performance | |
| Recording Resolution | 12MP, 8MP, 5MP, 3MP, 2MP (1080P), 1.3MP (960P), 1.0MP (720P) |
| Recording Compression | Audio: G.711A, G.711U |
| Speed | 4K: 45fps |
| Playback | 1080P: 180fps Max 4CH playback |
| Network | |
| Remote Connection | Up to 640 Users |
| WEB | IE10/11, |
| Protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, UPnP, HTTP, HTTPS |
| API | RS API/Onvif (profile S/G/T) |
| Voice command | Home Device: Google Assistant, Amazon Alexa |
| Interface | |
| P/W Reset | Yes |
| VGA | 1 (1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080) |
| HDMI | 1 (1024x768, 1280x720, 1280x1024, 1440x900,1600x1200,1920x1080, 1920x1200, 2560x1440 (2K), 3840x2160 (4K)/EDID |
| Ethernet | 1 RJ45 10/100 Base-T |
| PoE | 4 RJ45, 100 Base-T 802.3at/af |
| USB | 1 USB2.0 (front) |
| Audio | 1 out |
| E-sata | - |
| HDD | 1 SATA HDD, up to 10TB |
| RS485 | 1 |
| Alarm Input/out | - |
| General | |
| OSD Language | Swedish/English/French/Spanish/Portuguese/German/Italian/Greek/Danish/Finnish/ Russian/Hebrew/Turkish/Bulgarian/Arabic/Korean/Japanese/Thai/Hindi/ Romanian/Dutch/Polish/Persian/Hungarian/Chinese/Ukrainian |
| Dimension (WxDxH) | 300x227x53mm |
| Weight | ≤ 0.98kg (without HDD, 2.1lb.) |
| Input Voltage/Current | 48V/1.2A |
| Power consumption | 3.8W (excluding hard disk) |
| Operating Temperature | -10°C~+50°C (14°F ~ 122°F) |
| Humidity | Less than 90%RH |
| FCC | Yes |
| CE | Yes |

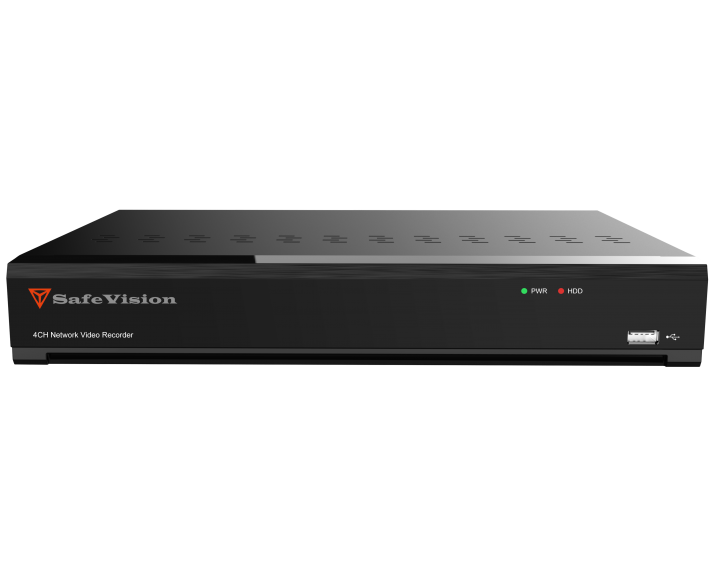

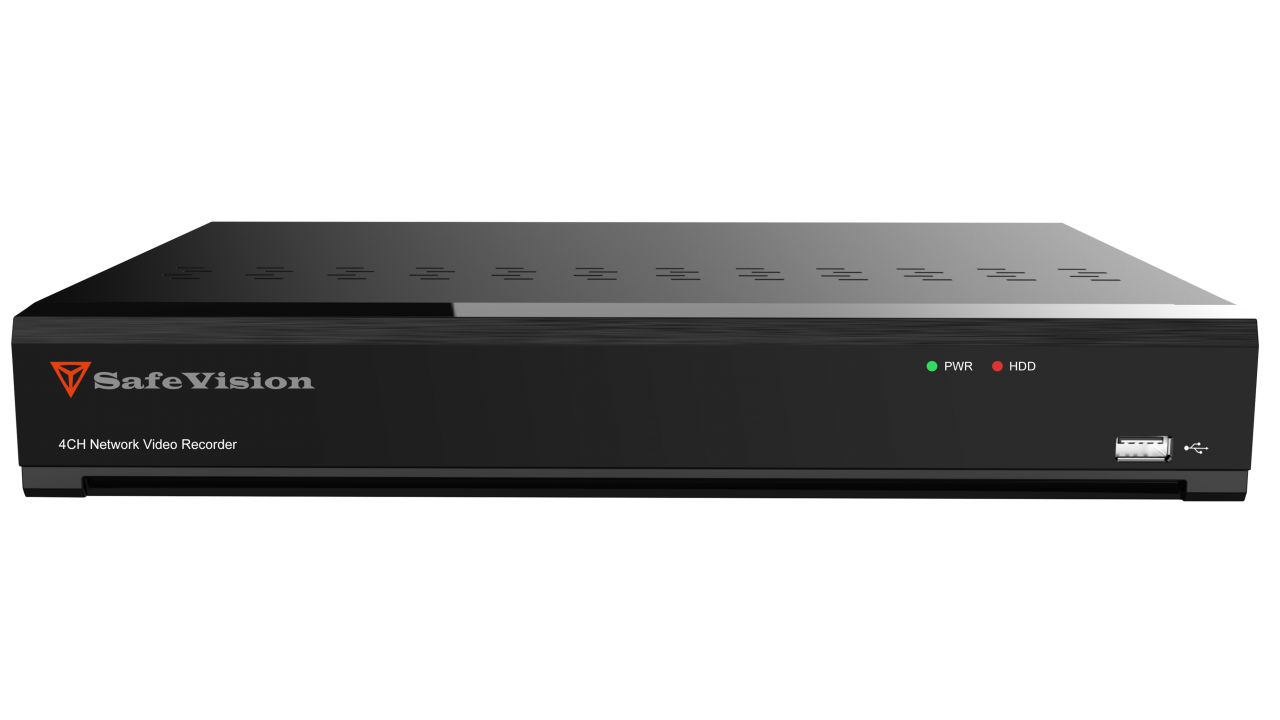

SV-N3604HR-P
4 Channel 12MP IP Recorder
With 4xPoE, Intelligent Analytics,
Human Detection, Vehicle Detection,
Licence Plate Recognition,
Perimeter Intrution and
Line Crossing Statistics.
Product Sheet
- Manufacturer: SafeVision
- Product Code: 30-302
- EAN: 7340213101877
- In Stock 54pcs
- Available 54pcs
