DESCRIPTION

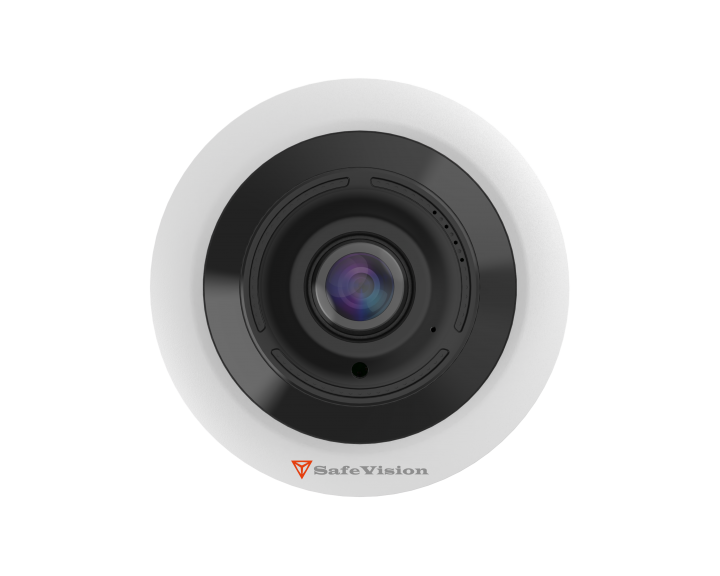

Equipped with a 1.6mm fixed lens, this 4MP Fisheye dome camera is designed for short-distance surveillance (up to 10m) in indoor and outdoor scenarios. This model complies with NDAA demands. With its outstanding performance, reliability, and affordable price, the camera is the perfect solution for any advance IP installation.

FUNCTIONALITIES

Smart IR Via Hardware

The Smart IR feature allows the camera to automatically adjust the intensity of the infrared light depending on the distance to the subject. This prevents the subject from being overexposed and washed out at close range, while ensuring sufficient illumination at longer distances.

More detailed description:

Traditionel IR:
Regular IR cameras have a fixed IR illumination, which can cause subjects close to the camera to be overexposed and difficult to distinguish, while subjects further away may be insufficiently illuminated.

Smart IR:
With Smart IR technology, the camera automatically adjusts the strength of the IR light. When an object gets closer to the camera, the IR light is reduced, and when the object is further away, it is increased.

Advantages:
This provides clearer and more detailed images in the dark, both near and far, improving surveillance quality.

Application example:
- In environments where people and objects can come close to the camera, such as corridors.
- Close-range vehicle monitoring.



RxCamView

The RXCamView mobile app makes it easy to remotely monitor SafeVision's camera system directly from a smartphone with Android or iOS. Basic settings for the recorder and cameras, as well as PTZ control, can be managed via the phone. The app allows you to connect to the recorder via P2P with a QR code, without additional network configuration. In addition, you can receive push notifications for selected alarm events.

Application example:
- Line rossing.
- Intrusion.
- Sabotage.


Supports the HTML5 Standard

The camera uses HTML5 (Hypertext Markup Language 5) to display images in the browser. This allows configuration and streaming from the camera not only via Internet Explorer but also in other popular browsers such as Opera, Firefox, Edge or Chrome. Thanks to HTML5, the user can securely and conveniently connect to the camera. The high performance of the HTML5 protocol allows high-definition video viewing without delay and with moderate use of computer resources.

(link is external)



Camera Configuration

From NVR

The recorder in combination with the cameras, in addition to the setting of basic parameters such as contrast and brightness, allows for a significantly more advanced level of camera settings. Depending on the functionality of the camera, this is possible from the recorder level.

Application example:
- Adjust the camera's network settings.
- Stream parameters.
- Adjust zoom and focus on a camera with a motorized zoom lens.
- Activate and set the image analysis function.

SD Card Slot

The recorder in combination with the cameras, in addition to the setting of basic parameters such as contrast and brightness, allows for a significantly more advanced level of camera settings. Depending on the functionality of the camera, this is possible from the recorder level.

Application example:
- Adjust the camera's network settings.
- Stream parameters.
- Adjust zoom and focus on a camera with a motorized zoom lens.
- Activate and set the image analysis function.



H.265+

H.265+ is an improved version of the H.265 (HEVC) video compression standard, designed to increase efficiency and reduce bandwidth and storage requirements, especially for surveillance video. This smart algorithm, developed by Hikvision, optimizes the encoding process to lower the bit rate while maintaining video quality at the same level as the original H.265.

H.265+ is based on three main techniques:

Predictive coding:
This technology analyzes and predicts changes in the video image, reducing the amount of data that needs to be recoded for each frame.

Noice reduction:
By reducing image noise, H.265+ can compress video more efficiently without losing important information.

Flexible bitrate control:
H.265+ can dynamically adapt the bitrate to the video content, ensuring that important information is compressed efficiently while less important parts are compressed more aggressively.

PoE

Power over Ethernet technology allows you to power an IP camera directly from the recorder or an external PoE switch, without the need for any additional power supplies.
This camera only has PoE.
