KEY FEATURES

• Video:
  Input: 4 Channel Conventional Connection (1 x RJ-45 Network).
  Supports dual IP-addresses.
  Output: HDMI: 1920x1080 (1080P), VGA: 1280x1024, 1024x768.
• Bandwidth:
  Outgoing: 32Mbps
  Incoming: 32Mbps.
• Decoding Support:
  H.265/H.264.
• Recording:
  Real-Time 4CH 5MP.
  FPS: 100 (PAL) / 120 (NTSC).
  Resolution: 2592x1944.

• Playback:
  4 Channels Simultaneously.
• Analytics support:
  Camera Tampering, Line Crossing, Sterile Area, Object Monitoring.
• Audio:
  Input: IP Camera inputs.
• Alarm:
  Input: IP Camera inputs only.
  Output: IP Camera outputs only.
• Storage:
  1 x SATA (Up to 6TB).
• USB Port:
  2 x USB2.0.
• Network:
  RJ-45: 100Mbps.

FUNCTIONS

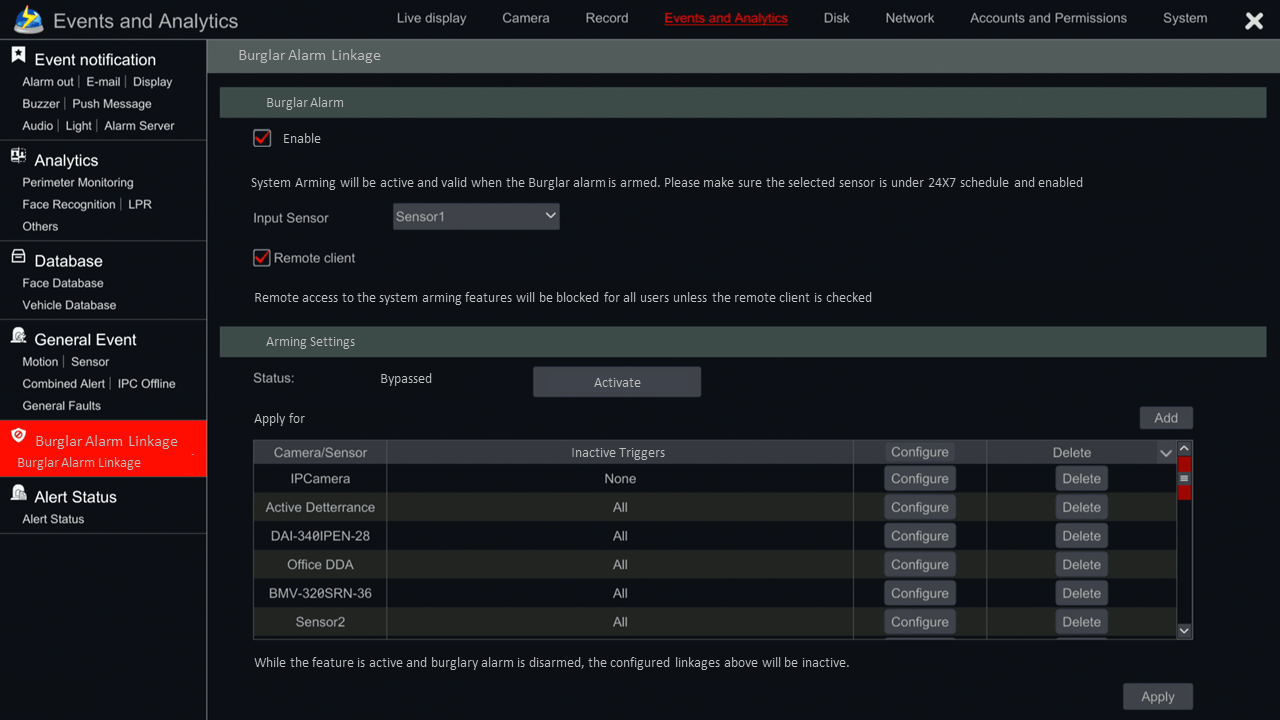

From this time forth, your CCTV and Alarm systems are
connected! Use your burglar alarm system to start/stop
all NVR triggers automatically. Control triggers (such as
recording, push notifications, sirens Etc.) with the
arm/disarm function on any burglar system.

The different analytics (Face Detection, LPR, DDA-Line crossing,
DDA-Sterile area, DDA-Object counting…) are now included in
the same screen which makes it more simple to find.

- Standard analytics and Advanced analytics  are part of
the same interface.
- Every analytic function has its own section.
- Sections are available only when the camera
supports that specific analytic function.

Enjoy the possibility to create multiple triggers for the
same camera!

Example:
- E-mail and push notification for group 1.
- Buzzer, alarm out, multi record for group 2.

Create a trigger for unmatched object!

Example:
Push notification+ email when an unrecognized vehicle
or person is detected.

Are you wondering what the new playback interface
can do for you?

You cannow
-  Add or replace cameras having a look at the
thumbnail preview.
- Get a preview window when pointing the mouse
on the time bar.
- Choose which events you want to appear in the
time-bar (Standard Analytics or Artificial intelligence events)

You can easily select your smart search mode among the
following options:
• Full screen mode
• Line Crossing
• Grid
• Quadrilateral

- A new “Face”  button allows you to choose a face and
start filtering accordingly.
- A new “Vehicle” button allows you to add, edit, and
search for a specific license plate in one click!
